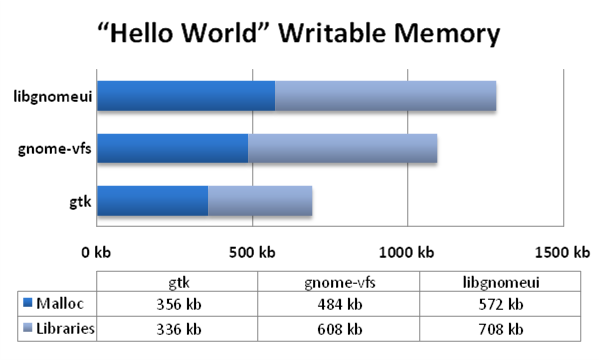

So, after measuring the benefit of removing libgnomeui from a program, I thought I might dig deeper into the cause of the bloat. I first made three hello world style applications: one used plain GTK, another used GTK but also initialized GNOME VFS, the last used libgnomeui (which also uses vfs). Each of these three programs loads a superset of the libraries of those before it. I used smaps to gather data about the heap space allocated (used by malloc) and the writable mappings due to shared libraries.
Some observations to make here:
- Malloced memory causes the most trouble at the gtk level. However, the gnome vfs and libgnomeui are still responsible for quite a bit of mallocing
- libgnomevfs is the worst offender with respect to loading libraries.
- libgnomevfs is a much larger jump in memory than libgnomeui

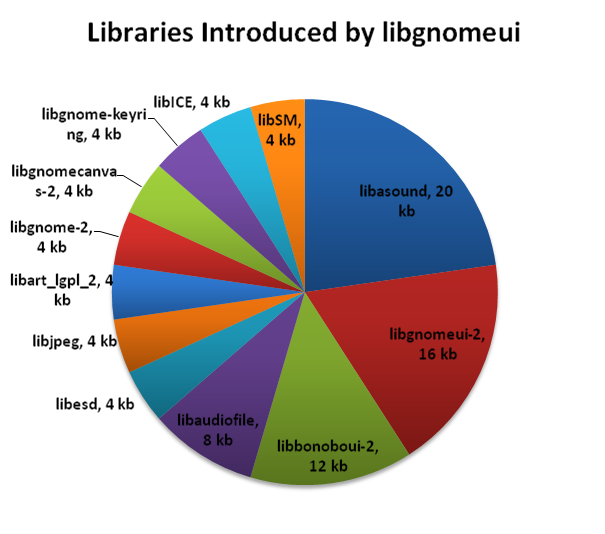

I then dug further into what libraries were being loaded by vfs and gnomeui. To get useful data here, I excluded the libraries loaded by gtk from consideration when looking at vfs and similarly excluded libraries loaded by vfs when looking at gnomeui.
- Bonobo, ORBit...ugh
- libgnutls, libxml2, and libgcrypt have quite a bit of writable memory. If they could be cut to 4 kb each, we'd save 50kb for each process with gnomevfs.
- The "Other" category has all the 4 kb libs. A few worth special mention: avahi loads three .so files. First, having avahi here seems a bit silly; second, three libraries. Also, libpopt is used, isn't there something in glib for this now?
- Maybe all those sound related libs should be dynamically loaded. Not many apps use sound!
Investigation to do
- Look at the malloced memory. Valgrind is a good tool here
- Look at the size of the writable memory in libraries mentioned here
